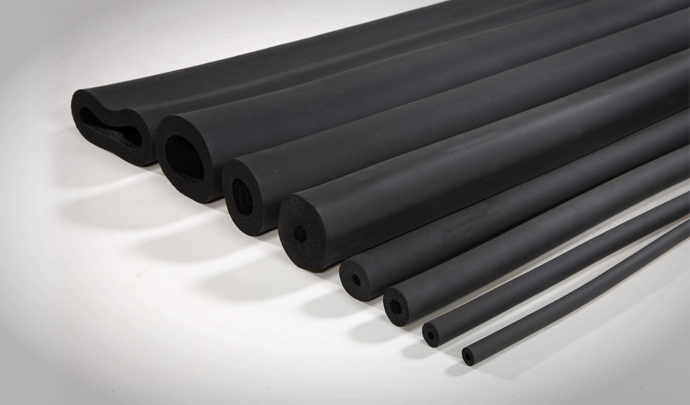

Optiflex Pipe

It is an elastomeric rubber based insulation material in the form of pipe with closed cell structure. It is manufactured to be used for air conditioning, heating and cooling systems.

Download Product Brochure

Find Closest Dealer

Application Area

It is used at the exterior surfaces of the pipes in the heating, cooling, ventilating and air conditioning systems for thermal insulation and condensation control purposes.
The pipe to be insulated and the rubber surface should fit properly and no gap should be left in between.
Joints should be tightly sealed.
The application should be protected against distruption and rupture.
For the applications exposed to sun, a protective coat or a protective paint should be used against UV affect.
For the outdoor applications, the surface should be coated within 5 days.

Certificates

Material Safety Forms

İZOCAM ELASTOMERIC RUBBER MSDS

Technical Specifications

Properties	Symbol	Unit	Description						Tolerance		Standard
Material	-	-	Closed Cell Synthetic Rubber						-		TS EN 14303
Lenght	l	mm	2000 ≤ L ≤ 50000 *						± % 1,5		TS EN 822
Inner Diameter	D_i,D	mm	≤ 100						D_i,D+ 1 ≤ D_i≤ D_i,D+ 4		TS EN 13467
			> 100						D_i,D+ 1 ≤ D_i≤ D_i,D+ 6
Thickness	t	mm	6 ≤ d ≤ 32						d_D≤ 8	±1,0	TS EN 823
									8<d_D≤18	±1,5
									18<d_D≤31	±2,5
									d_D> 32	±3,0
Reaction to fire	-	-	E						-		TS EN 13501-1
Declared Thermal Conductivity	T	°C	-20	0	25	40	60	80	-		TS EN 12667
	λ_D	W/m.K	0,031	0,034	0,036	0,041	0,042	0,043
Max. Service Temperature	-	°C	-50 / 105						-		-
Water Vapor Diffusion Resistance Factor	µ	-	≥ 5000						-		TS EN 12086
UV Resistance	-	-	Good						-		-
Resistance to Oils	-	-	Good						-		-
Resistance to Weather Conditions	-	-	Good						-		-
Flexibility	-	-	Excellent						-		-
Fungal Growth	-	-	None						-		-
Packaging Material	-	-	Carton Box						-		-

* Standard lenght is 2000 mm.
